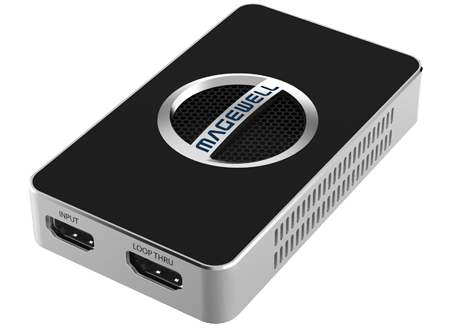

Magewell USB Capture HDMI 4K Plus

£428.00

Magewell Part Number: 32090 One channel 4K Capture Device

  • Capture HDMI + embedded audio
  • Loop-through HDMI signal
  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S
Magewell USB Capture HDMI 4K Plus.  Supports 4K inputs up to 60fps via HDMI 2.0 connectivity. Capturing at 30fps. 4K inputs with 4:4:4 or 4:2:2 color sampling are automatically converted to 4:2:0 for capture in the NV12 or I420 color space formats. To fit within the bandwidth available in the USB 3.0 standard.

The newest USB Capture Plus models enables all types of computers. Including laptops to capture professional video and audio signals. This is done through a standard USB 3.0 interface. No additional power source required. Available with SDI or HDMI inputs. The 4K USB Capture Plus devices capture resolutions up to 4096×2160, including 3840×2160 in Ultra HD.

The USB Capture HDMI 4K Plus offers loop-through connections. Reducing workflow costs and complexity by enabling source signals to be sent simultaneously to additional displays or equipment. No requirement for external splitters or routers. This cost-effective convenience combines with the devices rich feature set. Extensive compatibility to make them ideal for both end-user applications. Solutions for systems integrators, implementing complete 4K projects. The USB Capture HDMI 4K Plus support Windows, Mac and Linux operating systems. Compatibility with popular streaming, encoding, live production, collaboration, video conferencing and lecture capture software.

Magewell Exhibits USB Capture 4K Plus at InfoComm 2017 – LINK

How to capture the computer’s screen display using the Magewell USB Capture HDMI Plus and OBS – LINK

InterfaceVideo EngineSignal Detection & SupportSoftware Environment
Input Interface
• SD/HD/3G/2K/6G SDI x1
• Support input resolution up to 4096×2160 pixels

Loop-Through Interface
• SD/HD/3G/2K/6G SDI x1
• Support loop-through resolution up to 4096×2160 pixels

Audio Input Interface
• 3.5 mm audio jack for Line In

Audio Output Interface
• 3.5 mm audio jack for Line Out

Host Interface
• USB 3.0		8-bit video processing

Deinterlace

Cropping

Color Adjustment

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

Mirror and Flip		Auto Detection of Input Signal FormatOS
• Windows, Linux, Mac, Chrome OS

Driver and Firmware
• Driver Free, Updatable Firmware

Included Software
• USB Capture Utility, Capture Express

Compatible Software
50+

SPECIFICATIONS

Supported OS

  • Windows
    • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
  • Linux (support x86, x64 & ARM architecture)
    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
    • CentOS 6.5/7 (x86 & x64)
    • Fedora 25/26/27 (x86 & x64)
    • Red hat 6.5 and above (x86 & x64)
    • Other Linux OS with kernel version 2.6.35 and above
  • Mac
    • OS X 10.9/10.10/10.11
    • macOS 10.12 and above
  • Chrome OS

Recommended OS (tested)

  • Windows
    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux
    • Ubuntu 12.04/14.04/16.04 (x86 & x64)
    • Ubuntu 17.04/17.10/18.04 (x64)
    • CentOS 6.5/7.2 (x86 & x64)
    • Fedora 25/26 (x64)
    • Red hat 6.5 (x86 & x64)
  • Mac
    • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
    • macOS 10.12/10.13.2/10.13.3/10.14.3/10.15

Supported APIs

  • Windows
    • DirectShow
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
  • macOS
    • AVCaptureSession
    • AudioUnit

Compatible Software

  • Zoom
  • Skype
  • Mircosoft Teams
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Input Interfaces

  • HDMI
    • DVI-D 1.0
    • HDMI 1.4
    • HDMI 2.0
  • 3.5mm audio jack
    • Microphone interface

Host Interface

  • USB 3.0
    • compatible with USB 2.0
    • compatible with USB 3.1 Gen 1

Output Interface

  • 3.5mm audio jack
    • headphones interface

Loop-through Interface

  • HDMI
    • DVI-D 1.0
    • HDMI 1.4
    • HDMI 2.0

Input feature

  • Support for input video resolutions up to 4096×2160

HDMI Specific Features

  • 600MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for up to 4096×2160 4:4:4 60fps input signals
  • Support for 2 channel IEC60958 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

Analog Audio Features

  • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
  • Capture of analog audio via 3.5 mm microphone interface
  • Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.

Video Capture format

  • Support for capture resolutions up to 4096×2160
  • Support for capture frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB3.0 controller are as follows.)
    • 1920×1080 YUY2 (up to 90fps)
    • 3840×2160 NV12 (up to 30fps)
  • Support for NV12 & l420 4:2:0 8-bit (up to 4096×2160)
  • Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096×2160)
  • Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048×2160)
  • The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility.

Video Processing Features

  • Video processing pipelines with 640 Mpixels/s processing bandwidth
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of output aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Vertical flip and mirror

Multiple devices on one computer

  • Support for connecting multiple USB devices to one system
  • Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK

  • The USB Capture SDK provide functions including signal status extraction, capture configuration and real-time audio & video capture, etc.

Firmware Upgrade

  • Multiple devices in one system can be upgraded simultaneously

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: idle
    • On: input signal locked
    • Off: input signal unlocked
    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • 98.1mm (L) x 56.8mm (W) x 17mm (H)

Power Consumption

  • 5V max current: ~ 1.4A
  • Max power consumption: ~ 7W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing



ACCESSORIES

INCLUDED

magewell-usb-cable

    USB 3.0 Cable, P/N: 90062
