Magewell Eco Capture Quad SDI M.2
£559.00
Magewell Part Number: 11540 Four-channel 2K capture card
- Captures SD/HD/3G/2K SDI x 4 + embedded audio
| Interface | Video Engine | Signal Detection & Support | Software Environment | Others |
|---|---|---|---|---|
| Input Interface • HDMI x2 • Support input resolution up to 4096×2160 pixels Loop-through Interface • HDMI x2 Host Interface • PCIe Gen2 x8 | 10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion OSD SG-DMA Transmission mode | Auto Detection of Input Signal Format 3D HDMI Time Code HDR10 | OS • Windows, Linux, Mac Driver and Firmware • Universal Driver, Updatable Firmware Included Software • Pro Capture Utility, Capture Express Compatible Software 50+ | Multiple Capture Streams Low Latency Mode Multiple Devices on One Host Mounting Hole Continuously Work for 24hx7 High-speed Memory LED Status Indicator Rotary Switch Windows & Linux SDK 2-year Warranty |

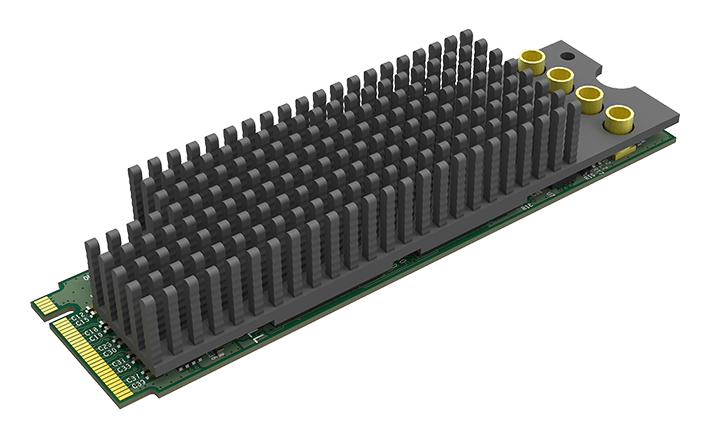

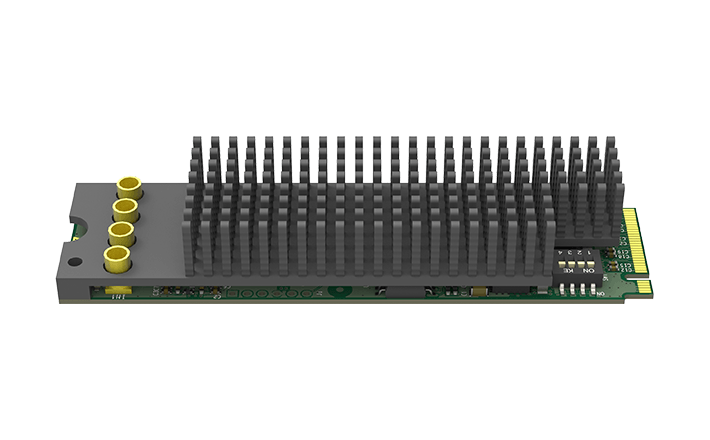

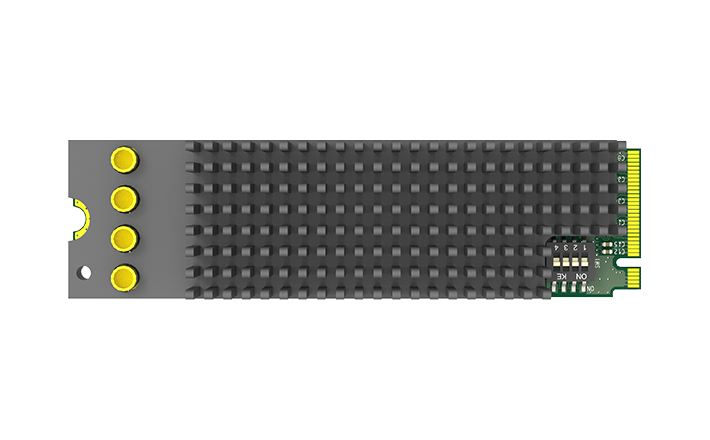

The Eco Capture Quad SDI M.2 is a four-channel 2K SDI capture card with connection for a M.2 slot. This Eco card supports video capture for SD/HD/3G/2K SDI signals up to 2048 x 1080 pixels per channel input with embedded audio, and high-frame rate capture up to 144fps. These cards (22x80mm) are designed for small and portable systems that do not have space for full-size PCIe slots.
The Magewell Eco Capture M.2 cards offer high-performance and powerful video capture solutions with low power consumption. The Magewell SDK enables developers to customize the Magewell APIs for lower-latency capture and synchronize channels across multi-channel or even multiple capture cards.
SPECIFICATIONS
Eco Capture Quad SDI M.2 Specifications
Supported OS
- Windows
- Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
- Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested)
- Windows
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
- Linux
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10/18.04 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
Supported APIs
- Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
- Linux
- V4L2
- ALSA
Supported Software
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces
- 4x MMCX
- SD/HD/3G/2K SDI
Host Interfaces
- M.2 2280 Type M (PCIe Gen2 x4)
Input features
- Support for input video resolutions up to 2048×1080 pixels
SDI Specific Features
- Integrated cable equalizer extending the cable length as follows:
- up to 330m for SD-SDI signals
- up to 190m for HD-SDI signals
- up to 150m for 3G-SDI signals
- Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
- Support for 2K (2048×1080) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 8 (mono) audio channels at 48KHz
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces:
- YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
- YCbCr 4:4:4 10-bit: captured as 4:2:2
- RGB 4:4:4: R/B sub-sampled
- Support for Closed Caption via SDK
Video Capture Formats
- Support for capture image resolutions up to 2048×1080 pixels
- Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. For the resolution of 1280×1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920×1080 resolution can up to 80fps.)
- Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
- Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- More capture formats are supported via SDK
Video Processing Features
- Video processing pipelines with ~180Mpixels/s processing bandwidth
- 10-bit 4:4:4 video processing
- Video scaling
- Video de-interlacing
- Weave
- Blend top & bottom field
- Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
Multiple Cards per System
- Support for multiple cards plugged to one system
- On-board dip switch to set card number with 16 positions
- System hardware device tree will display “01: Eco Capture Quad SDI M.2” when dip switch is set to 0001, and so on
- The video and audio device names displayed in your software will include the card number (set by the dip switch)
Multiple Replicated Capture Streams
- Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V Synchronization
- Hardware based 100ns high resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA
- ~400MB/s per channel DMA bandwidth in PCIe 2.x system
- ~200MB/s per channel DMA bandwidth in PCIe 1.x system
- Support for auto detection of Intel tiled GPU surface
- Support for DirectGMA for AMD video adapter chipsets
- Support for GPUDirect for Nvidia video adapter chipsets
SDK
- Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
- Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance
Windows Driver Tweaks
- All options can be controlled by three levels of registry key: global level, product level and device level
- Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
- Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.
LED Indicator
- Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed
Form Factor
- M.2 2280 standard size
Accessories
- 4 X MMCX to BNC cables
Power Consumption
- Max current at 3.3V: ~ 2.17 A
- Max power consumption: ~ 7.16 W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
