Out of Stock

Magewell FLEX I/O SDI 4I2O

£1,086.00

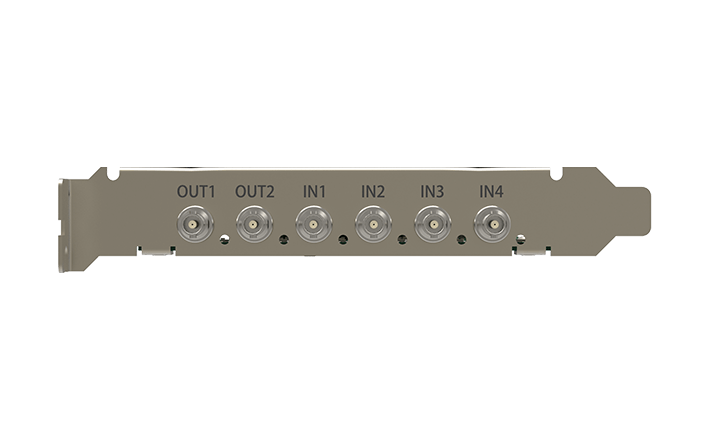

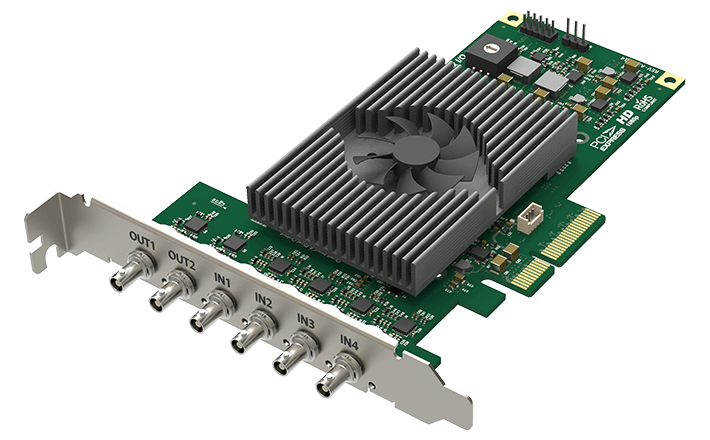

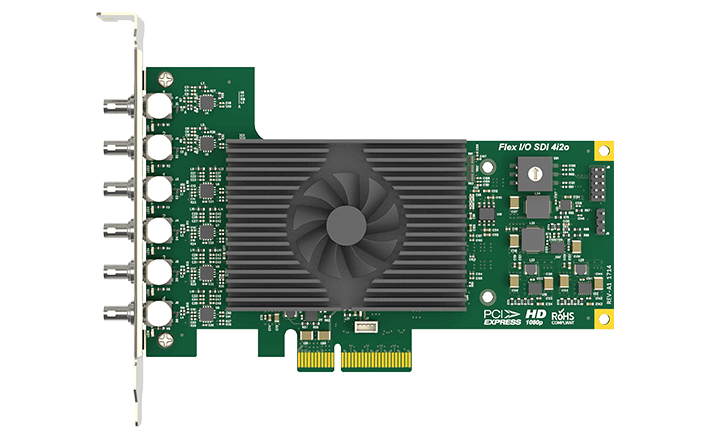

Magewell Part Number: 11800 4-channel 2K capture +2-channel 2K playback card

  • Simultaneously capture 4 channels of SD/HD/3G/2K SDI + embedded audio
  • Simultaneously playback 2 channels of SD/HD/3G/2K SDI + embedded audio

Out of stock


InterfaceVideo EngineSignal Detection & SupportSoftware EnvironmentOthers
Input Interface
• HDMI x1
• Support input resolution up to 4096×2160 pixels

Host Interface
• M.2(PCIe Gen2 x4)
8-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode		Auto Detection of Input Signal Format

3D HDMI

Time Code		OS
• Windows, Linux, Mac

Driver and Firmware
• Universal Driver, Updatable Firmware

Included Software
• Pro Capture Utility, Capture Express

Compatible Software
50+		Low Power Consumption

Multiple Replicated Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

Windows&Linux SDK

2-year Warranty

Dip Switch

LED Status Indicator
