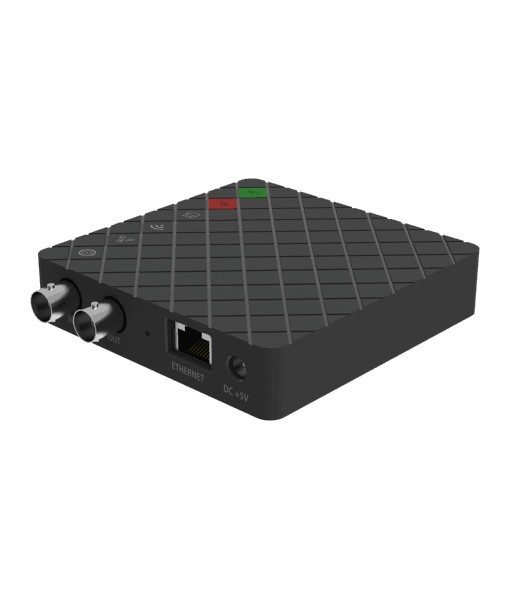

Magewell Ultra Stream SDI

£366.00

  • One-channel 3G SDI encoder
  • SKU:
    530200000 (for US/EU/UK/AU/JP users);
    530200006 KR
  • The device is supplied with different options of power adapters.
  • Original part number:  53022 EU; 53023 UK
  • Record and stream 1 channel of 3G SDI + embedded audio + microphone
  • Loop-through SDI + embedded audio

The Magewell Ultra Stream SDI is equipped with one click operations. Operations also managed through a smartphone app making this an ideal application for non-professionals.
Technical expert knowledge not required as this device is very simple to use. The Magewell Ultra Stream SDI can stream to Twitch, YouTube, and Facebook Live or to any RTMP server.
This standalone unit is perfect for lecturers, university, churches, medical, educators, gamers, online meeting such as zoom and industry professional alike.

Magewell-Ultra-stream-SDI-diagram

EASY TO USE

  • Stand-alone device; no computer needed
  • Control via on-device buttons or intuitive Android/iPhone smartphone app
  • LED indicators display status
 magewell ultra stream HDMI

RECORD HIGH QUALITY VIDEO FOR STORAGE OR SHARING



  • Preview, record & stream simultaneously
  • Record to MP4 files at up to 1080p60
  • H.264 video encoding with AAC audio
  • Save to mobile phone or to a connected USB flash
magewell_ultra_stream_encoder_storage_flash_drive magewell_ultra_stream_encoder_smartphone

ADD YOUR NARRATION; MONITOR YOUR AUDIO

  • Connect a microphone via analog audio input
  • Monitor SDI and microphone

magewell_ultra_stream_encoder_audio

LIVE STREAM TO PLATFORMS OF YOUR CHOICE

  • Encode and stream at up to 1080p60
  • Stream to YouTube, Twitch or Facebook Live with one click
  • Stream to a custom RTMP server
 LIVE STREAM TO PLATFORMS OF YOUR CHOICE

SPECIFICATIONS

Input Features

  • Max input & loop-through signal: 2048×1080 60fps
  • Supported SDI inputs include:
    • 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 25/29.97/30/50/59.94/60
    • 720×576 25p/50i (PAL SD)
    • 720×480 29.97p/59.94i (NTSC SD)
  • 8/10/12-bit color
  • Support 16-Channel SDI embedded audio
  • Input audio from 3.5mm microphone

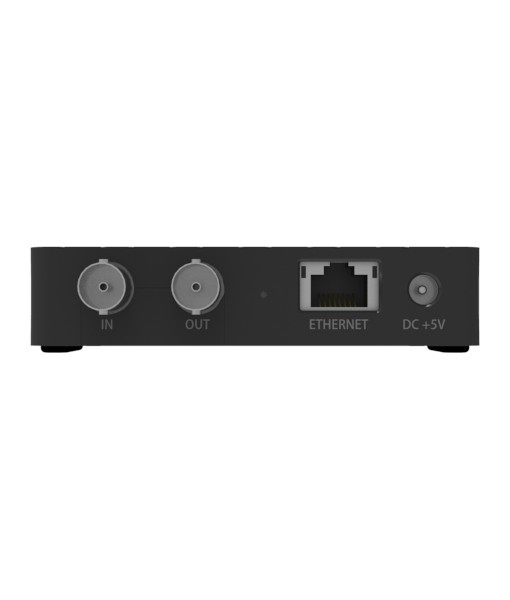

  • SD/HD/3G BNC input & loopthrough
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards

Encoding Features

  • Dual-stream encoding: main stream and sub stream
  • Max bitrate:
    • Main Stream – 8Mbps
    • Sub Stream – 2Mbps
  • Supported resolutions:
    • HD: 1920×1080, 1600×1200, 1600×900, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768
    • SD: 960×540, 800×600, 768×576, 720×576, 720×540, 640×480, 640×360, 480×360, 480×270
  • Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
  • H.264/H.265(HEVC) video encoders
  • Encoding 2-channel AAC at 48kHz, 16-bit
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from input signal and output through 3.5mm headphone

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols including RTSP/RTMP/RTMPS
  • Up to 2 streaming sessions simultaneously

Recording Features

  • Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
  • To a USB Flash Drive
    • support auto-recording, normal recording
    • recording as MP4 or MOV files
  • To internal SD storage (32GB)
    • support auto-recording
    • support loop-styled or normal recording
    • recording as MP4 or MOV files
  • To paired mobile device
    • recording as MP4 files
    • taking still image snapshots during recording
    • timer recording at 15s, 30s, 1min, 2min, 5min

Management & Configuration

  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
  • Update firmware
  • Remotely control via App or WebUI
  • WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

Network

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 3G/4G USB mobile broadband Modem (not included)
  • Bluetooth 4.0 BLE

LED Indicators

  • Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
  • Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption

  • DC 5V/2A
  • Max power consumption: ~7.2 W

Form Factor

  • 94.20mm x 94.20mm x 22.30mm

Accessories

  • AC adapter

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing



ACCESSORIES

INCLUDED

magewell-ultra-stream-sdi-cables
