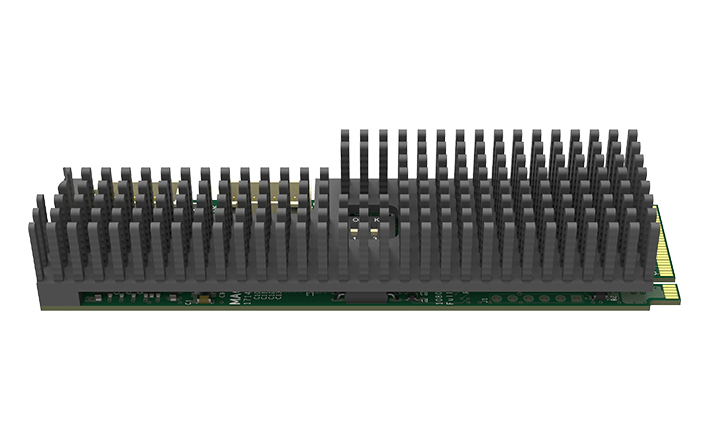

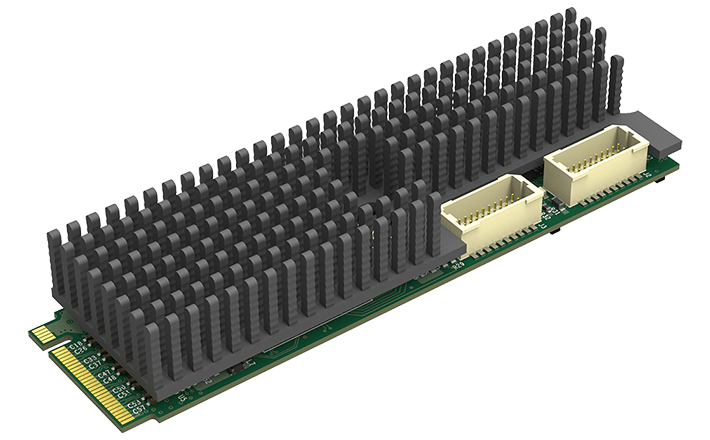

Magewell Eco Capture Dual HDMI M.2
£286.00
Magewell Part Number: 11510 Two-channel 2K capture card
- HDMI x 2 + embedded audio x 2
| Interface | Video Engine | Signal Detection & Support | Software Environment | Others |
|---|---|---|---|---|
| Input Interface • SD/HD/3G/2K SDI x4 • Support input resolution up to 2048×1080 pixels Host Interface • M.2(PCIe Gen2 x4)) | 10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion SG-DMA Transmission mode | Auto Detection of Input Signal Format Closed Caption | OS • Windows, Linux, Mac Driver and Firmware • Universal Driver, Updatable Firmware Included Software • Pro Capture Utility, Capture Express Compatible Software 50+ | Low Power Consumption Multiple Replicated Capture Streams Low Latency Mode Multiple Devices on One Host Mounting Hole Continuously Work for 24hx7 Windows&Linux SDK 2-year Warranty Dip Switch LED Status Indicator |
|
The Magewell Eco Capture Dual HDMI M.2 is a high-performance video capture card. Designed for professional applications. It features two HDMI inputs. Allowing users to simultaneously capture two independent HDMI sources up to 2048 x 2160. One of the key features of this capture card is its compact M.2 form factor. Making it suitable for small form factor computers. Embedded systems where space is limited. |
|
|
It also supports PCIe Gen2 x1 bus interface. Ensuring fast and reliable data transfer. This capture card is equipped with advanced video processing capabilities such as deinterlacing, scaling, color adjustment, and more. It also supports multiple APIs for integration with popular software platforms. Offers extensive software compatibility |
|
|
The Magewell Eco Capture Dual HDMI M.2 offers a range of benefits. Applications that make it a versatile. Valuable tool for professionals in various industries. One major benefit is its ability to capture and record high-definition video from two HDMI sources simultaneously. This is particularly useful for live streaming, video conferencing, and recording applications. Where multiple camera angles or sources need to be captured at the same time. Dual HDMI capture card. |
SPECIFICATIONS
Eco Capture Dual HDMI M.2 Specifications
Supported OS
- Windows
- Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
- Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested)
- Windows
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
- Linux
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10/18.04 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
Supported APIs
- Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
- Linux
- V4L2
- ALSA
Supported Software
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces
- 2x JST SHD 20-Pin socket (Part number: 11510)
- DVI 1.0
- HDMI 1.4a
- 2x FPC 20-Pin socket (Part number: 11514)
- DVI 1.0
- HDMI 1.4a
Host Interface
- M.2 2280 Type M (PCIe Gen2 x4)
Input Features
- Support for input video resolutions up to 2048×2160 pixels
HDMI Specific Features
- 165MHz HDMI receiver
- Adaptive HDMI equalizer, the HDMI transmission distance can be up to 30 meters
- Support for customized EDID
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Support for 8/10/12-bit color depths
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for extraction of Sony/Canon DSLR time code
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
Video Capture Formats
- Support for capture image resolutions up to 2048×2160 pixels
- Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. For the resolution of 1280×1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920×1080 resolution can be up to 80fps.)
- Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
- Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- More capture formats are supported via SDK
Video Processing Features
- Video processing pipelines with ~180Mpixels/s processing bandwidth
- 8-bit 4:4:4 video processing
- Video scaling
- Video de-interlacing
- Weave
- Blend top & bottom field
- Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
Multiple Cards per System
- Support for multiple cards plugged to one system

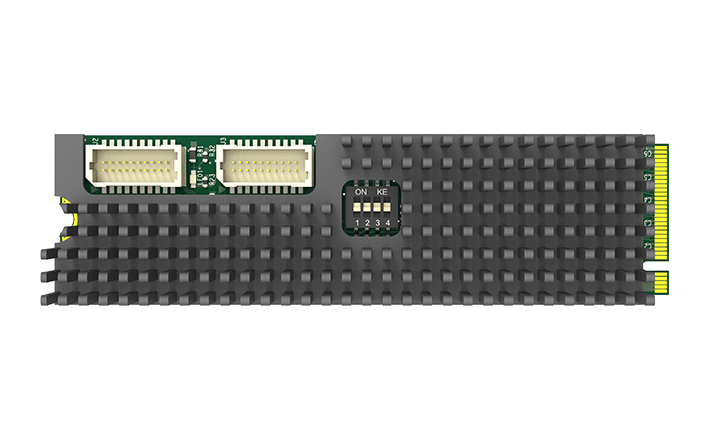

- On-board dip switch to set card number with 16 positions
- System hardware device tree will display “01: Eco Capture Dual HDMI M.2” when dip switch is set to 0001, and so on
- The video and audio device names displayed in your software will include the card number (set by the dip switch)
Multiple Replicated Capture Streams
- Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V Synchronization
- Hardware based 100ns high resolution clock
- Audio frames (192 audio samples) & video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA
- ~700MB/s per channel DMA bandwidth in PCIe 2.x system
- ~400MB/s per channel DMA bandwidth in PCIe 1.x system
- Support for auto detection of Intel tiled GPU surface
- Support for DirectGMA for AMD video adapter chipsets
- Support for GPUDirect for Nvidia video adapter chipsets
SDK
- Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
- Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance
Windows Driver Tweaks
- All options can be controlled by three levels of registry key: global level, product level and device level
- Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
- Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
- Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed
Form Factor
- M.2 2280 standard size
Accessories
- 2 X SHD to HDMI type A cables (Part number: 11510)
- 2 X FPC ribbon cables (Part number: 11514)
- 2 X FPC to HDMI type A adapters (Part number: 11514)
Power Consumption
- Max current at 3.3V: ~ 1.25 A
- Max power consumption: ~ 4.17 W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
