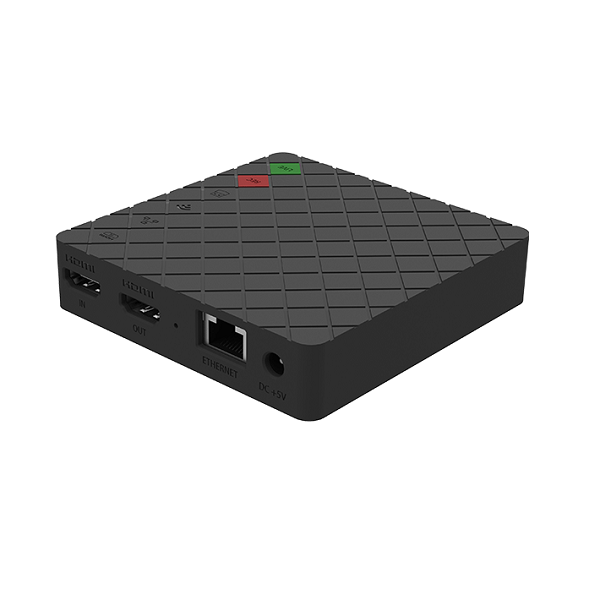

Ultra Stream HDMI

£0.00

A dedicated HDMI streaming encoder with loop-through

Part number:
53010 US; 53012 EU; 53013 UK;
53014 AU; 53015 KR; 53016 JP

The device is supplied with different options of power adapters.

  • Live streaming to popular services such as Facebook Live, YouTube or Twitch
  • Streams to a custom-specified RTMP or RMTPS server and supports sending RTSP streams
  • Records video to the internal storage, a connected USB drive or an associated smartphone
  • Internet connectivity via wired Ethernet, Wi-Fi and optional 3G/4G modem support

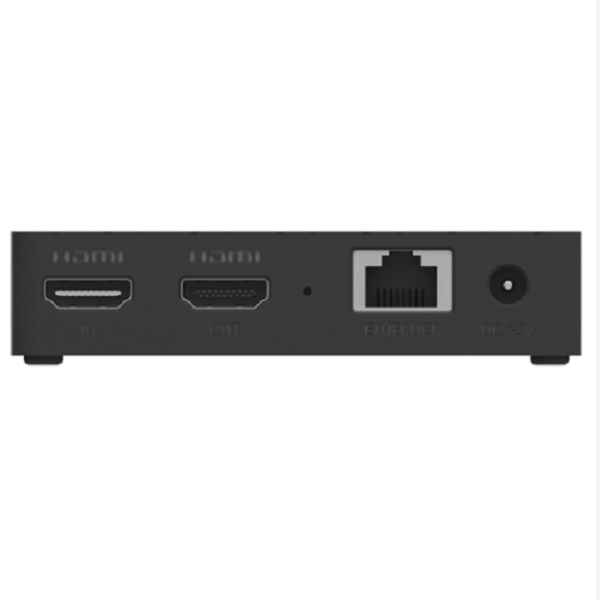

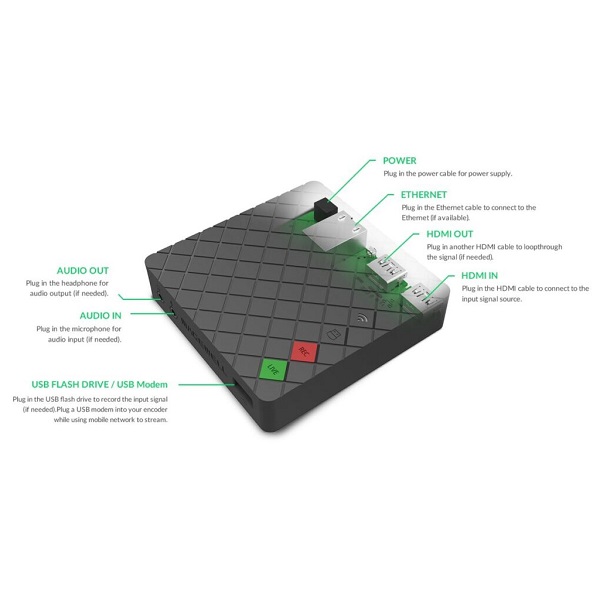

Interface

SPECIFICATION & FEATURES

  • HDMI Specific Features

    • Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input and loop-through signals

    Audio Input/Output

    • Add narration through the analog microphone input
    • Monitor the input signal through the analog headphone output

    Encoding Features

    • H.264 or HEVC (video) and AAC High Quality (audio) encoding; Video bitrates up to 8Mbps

    Streaming Features

    • Stream to servers or platforms based on RTMP or RTMPS protocol
    • Stream to 2 servers simultaneously
    • Support for RTSP protocol

    Recording Features

    • Record to internal storage (32GB), USB flash drive or the associated smartphone
    • Record as MP4 or MOV files

FULL SPECIFICATION & FEATURES

Input Features

  • Max HDMI input & loop-through signals:
    • 4096×2160 4:2:0 60fps
    • 4096×2160 4:4:4/4:2:2 30fps
  • Custom EDID
  • Supported HDMI inputs include:
    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
    • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 1920x1080i 25/29.97/30/50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
    • 720x576p 50/100/144
    • 720x576i 25/50
    • 720x480p 59.94/60/144
    • 720x480i 29.97/30
  • 8/10/12-bit color
  • Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
  • Input audio from 3.5mm microphone
  • HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features

  • Dual stream encoding: main stream and sub stream
  • Max bitrate:
    • Main Stream – 8Mbps
    • Sub Stream – 2Mbps
  • Supported resolutions:
    • HD: 1920×1080, 1600×1200, 1600×900, 1440×1080, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768
    • SD: 960×540, 800×600, 768×576, 720×576, 720×540, 640×480, 640×360, 480×360, 480×270
  • Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
  • H.264/H.265(HEVC) video encoders
  • Encoding 2-channel AAC at 48kHz, 16-bit
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from HDMI signal and output through 3.5mm headphone
  • Encoding videos after de-interlacing

Streaming Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols including RTSP/RTMP/RTMPS
  • Up to 2 streaming sessions simultaneously

Recording Features

  • Recording to a USB flash drive, internal SD storage and paired mobile device simultaneously
  • To a USB Flash Drive
    • support auto-recording, normal recording
    • recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • Downloading recorded videos via WebUI
  • To internal SD storage (32GB)
    • support auto-recording, loop-styled or normal recording
    • recording as MP4 or MOV files
    • Recording duration can be 5/10/30/40/50/60/90/120 min
    • uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox and Google Drive via WebUI
    • Downloading recorded videos via WebUI
  • To paired mobile device
    • recording as MP4 files
    • taking still image snapshots during recording
    • timer recording at 15s, 30s, 1min, 2min, 5min

Configuration Management

  • Register with 2 Magewell Cloud platforms
  • Remote control via Application, WebUI and Magewell Cloud
  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
  • Update firmware
  • WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

Network

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 3G/4G USB mobile broadband Modem (not included)
  • Bluetooth 4.0 BLE

LED Indicators

  • Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
  • Indicate the working state of the device: startup, recording, streaming, updating

Power Supply and Consumption

  • DC 5V/2A
  • Max power consumption: ~9.6 W

Form Factor

  • 94.20mm x 94.20mm x 22.30mm

Accessories

  • AC adapter
  • HDMI cable

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

OTHERS

  • Internet connectivity via wired Ethernet, Wi-Fi or optional 3G/4G modem support
  • Control via on-device buttons, intuitive smartphone app or browser-based interface
  • HTTP-based APIs for custom integration

Firmware

Firmware

V1.5.247

27.7 MB | 2023.07.18

Descriptions:
  1. Support entering the Web UI without login.
  2. Support Control Hub.
  3. Fix known problems.
