USB Capture SDI 4K Plus

£0.00

One-channel 4K capture device

Part number: 32100

  • Capture SD/HD/3G/2K/6G SDI + embedded audio
  • Loop-through SD/HD/3G/2K/6G SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out

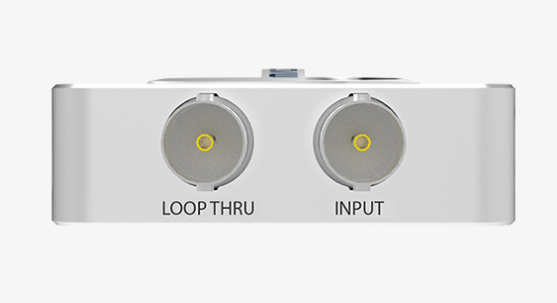

Interface

SPECIFICATION & FEATURES

Interface

Input Interface & Loop-through Interface

  • One SD/HD/3G/2K/6G SDI input + embedded audio
  • One SDI loop-through
  • Support input & loop-through resolution up to 4096×2160 pixels

Audio Input/Output Interface

  • 3.5mm audio jack for Line In/ Line Out

Host Interface

  • USB 3.0, compatible with USB 2.0

OS

  • Windows, Linux, Mac, Chrome OS

Capture format

  • Support capture resolutions up to 3840x2160p 30fps or 1920x1080p90
  • Capture 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In interface
  • Capture SDI signals transmitted a long distance away: up to 150m for 3G-SDI signals, 75m for 6G-SDI signals

Actual frame rate can be limited by the host and resolution

Included Software

  • USB Capture Utility, Capture Express, etc.

Compatible Software

  • Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.

FULL SPECIFICATION & FEATURES

Input Features

  • Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit)
  • Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
  • Up to 8-channel embedded audio
  • Input analog audio via 3.5mm line in
  • SD/HD/3G/6G-SDI BNC input & loop through
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard
  • Input SDI signals transmitted up to 75m for 6G-SDI signal

Process and Capture Features

  • Video processing pipelines with ~640Mpixels/s processing bandwidth
  • Capture videos up to 4096×2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30
    • 2560x1440p60
    • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90
    • 720x576p25
    • 720x480p30
  • Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
  • Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
  • Output audio of SDI signal via 3.5 mm line out
  • Up to 2 audio channels at 48KHz

Included Software

  • USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA
  • macOS AVCaptureSession/AudioUnit

Output Interface

  • USB 3.0
    • compatible with USB 2.0
    • compatible with USB 3.1 Gen 1

Compatible Software

  • Zoom Rooms
  • Microsoft Teams
  • Skype for Business
  • Google Hangouts
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

  • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9/macOS 10.12 and above
  • Chrome OS

LED Indicator

  • Status LEDs indicate the working state of the device:
    • Pulsing slowly: input signal unlocked
    • On: input signal locked
    • Double blinks: memory abnormal or FPGA configuration failed
    • Off: firmware or power supply abnormal

Form Factor

  • 4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)

Accessories

  • 1 × USB 3.0 cable

Power Consumption

  • 5V max current: ~0.86 A
  • max power consumption: ~ 4.3 W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

OTHERS

      • Auto detection of input signal format
      • Windows, Linux and Mac SDK
      • Continuously work for 24hx7
      • LED status indicator
      • 3-year warranty
