Ultra Encode HDMI

£0.00

A Flexible & Affordable Universal Encoder

  • Live H.264/H.265 streaming
  • Supports streaming protocols including SRT, NDI®|HX, HLS & more
  • Suitable for various network environment

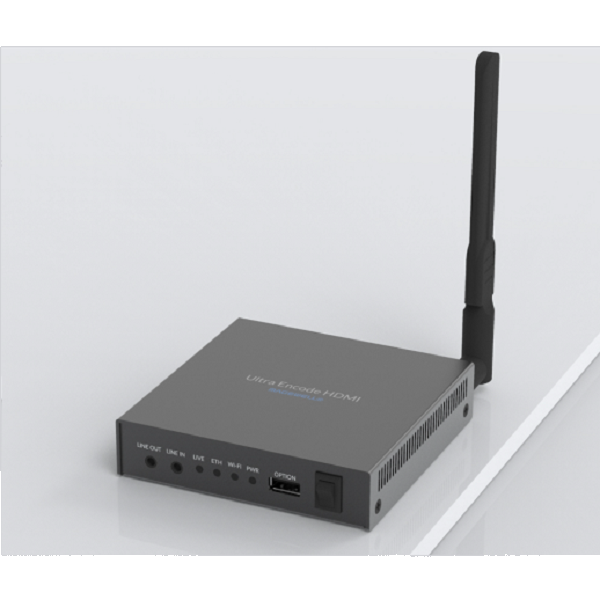

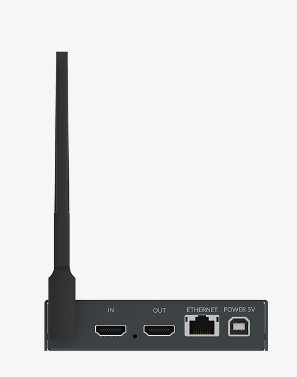

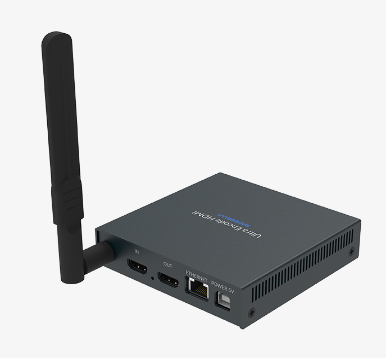

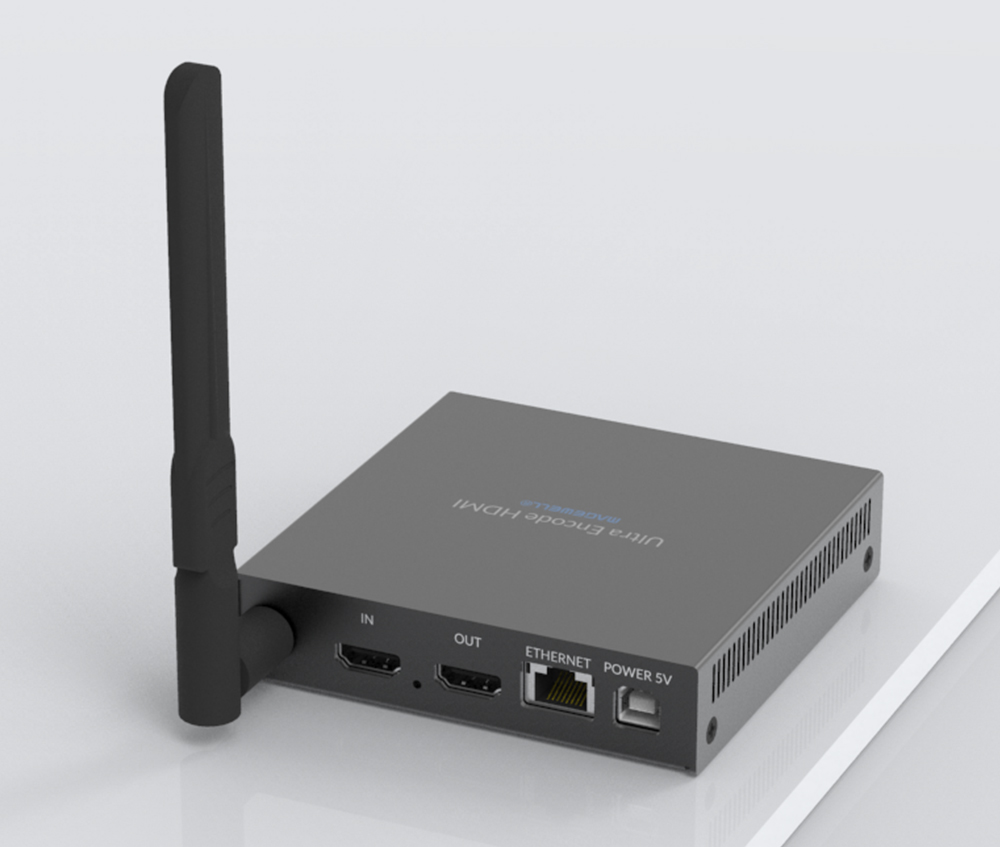

Interface

SPECIFICATION & FEATURES

  • Input Features

    • Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input and loop through signals
    • Support for 48KHz, 16-bit 8-channel audio streams
    • Input audio from 3.5 mm LINE IN

    Encoding Features

    • Dual stream encoding profiles: main stream and sub stream (Max bitrate: 16Mbps)
    • Support for H.264/HEVC video encoding
    • Encoding 2-channel AAC at 48kHz, 16-bit

    Streaming Features

    • Natively support streaming to Facebook, Twitch and YouTube
    • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
    • Allow streaming to multiple destinations simultaneously (select protocols)

FULL SPECIFICATION & FEATURES

Input Features

  • Max HDMI input & loop-through signals:
    • 4096×2160 60fps 4:2:0
    • 4096×2160 30fps 4:4:4/4:2:2
  • Custom EDID
  • Supported inputs include:
    • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
    • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
    • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 1920x1080i 25/29.97/30/50/59.94/60
    • 1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
    • 720x576p 50/100/144
    • 720x576i 25/50
    • 720x480p 59.94/60/144
    • 720x480i 29.97/30
  • 8/10/12-bit color
  • Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
  • Input audio from 3.5 mm LINE IN
  • HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features

  • Dual stream encoding : main stream and sub stream
  • Max bitrate: 16Mbps
  • Support resolutions:
    • HD: 2408x1080p/1920x1200p/1920x1080p/1920x720p/1664x936p/1600x1200p/1600x900p/1440x1080p/1440x900p/1280x1024p/1280x960p/1280x800p/1280x720p/1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
    • SD: 960x540p/800x600p/768x576p/720x576p/720x540p/720x480p/640x480p/640x360p/480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
  • H.264/H.265 (HEVC) supports system timecode or RP–188 standard timecode for SEI Message setting
  • Converting video aspect ratio of dual streams
  • Encoding 2-channel AAC
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from HDMI signal, LINE IN and output through LINE OUT
  • Encoding videos after de-interlacing
  • H.265 (HEVC) SEI message supports carrying interlacing signal mark

Streaming Features

  • Natively support Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
  • Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
    • Up to 6 sessions of TS over RTP and TS over UDP simultaneously
    • Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
    • Up to 6 sessions of RTMP and RTMPS simultaneously
  • Stream only 1 session of HLS, RTSP, or NDI|HX2
  • Specify streaming main stream or sub stream for each session

Configuration Management

  • Register with Control Hub
  • Remote control via WebUI and Control Hub
  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Low-resolution thumbnail preview
  • Adding up to 8 overlays, including text, picture, and clock
  • Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
  • Update firmware
  • Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

Network Connections

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 4G/5G USB mobile broadband Modem (not included)
  • USB Net

Input/Output Interfaces

  • HDMI input and loop-through interfaces
  • 3.5mm LINE IN
  • 3.5mm LINE OUT

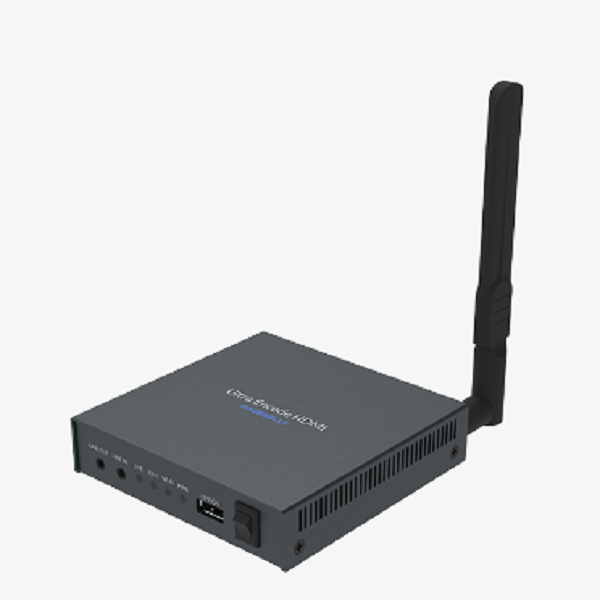

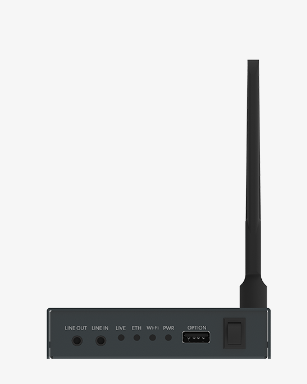

LED Indicators

  • LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

Power Supply and Consumption

  • DC 5V/3A
  • Max power consumption: ~8.62W

Form Factor

  • 106.6mm x 106.2mm x 25mm

Accessories

  • 1 x 5V Power Adapter
  • 1 x HDMI Cable
  • 1 x USB Type A to Type B cable
  • 1 x Wi-Fi Antenna
  • 1 x T-bracke

Screw Mounting Hole

  • 2 x M3 threaded hole
  • A standard 1/4″-20 socket provided by T-bracket

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 60 deg C
  • Relative humidity: 5% to 90% non-condensing

OTHERS

  • Internet connectivity via wired Ethernet and wireless network
  • Remote control via Web GUI and Control Hub
  • Provide HTTP APIs

Firmware

Firmware

V2.2.98

44.1 MB | 2023.08.04

Descriptions:

* This firmware applies to Ultra Encode HDMI Rev B.

  1. Support configuring HTTP/HTTPS service port.
  2. Support adding administrator user.
  3. Support disabling the encoder of sub-stream.
  4. Support Control Hub.
  5. Fix known issues.
