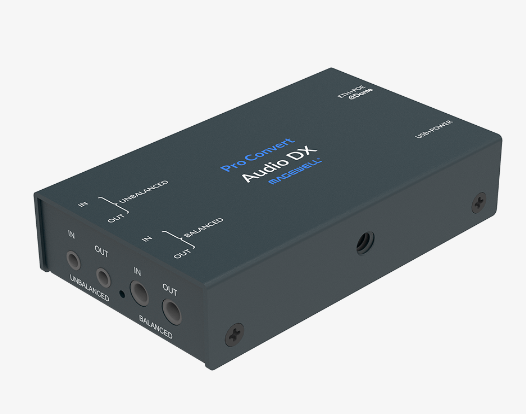

Pro Convert Audio DX

£0.00

A multi-format IP audio converter and capture device (Dante® enabled)

  • Offers a seamless bridge between analog audio, software and IP standards including Dante®, NDI®, SRT and more
  • Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
  • Enables mixed-technology local and remote production workflows and ProAV installations

Interface

SPECIFICATION & FEATURES

  • Input/Receiving Features

    • 1 x 2-channel 3.5mm unbalanced in
    • 1 x 2-channel 4.4mm balanced in
    • 1 x 4-channel 24-bit/48k UAC in
    • Receiving 8-channel 24-bit Dante® streams in unicast or multicast
    • Receiving 1 x 4-channel 16-bit SRT/NDI® audio stream simultaneously

    Output/Sending Features

    • 1 x 2-channel 3.5mm unbalanced out
    • 1 x 2-channel 4.4mm balanced out
    • 1 x 4-channel 24-bit/48k UAC out
    • Encoding 8-channel 24-bit Dante® streams in unicast or multicast
    • Encoding 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio stream simultaneously

    Audio routing and mixing Features

    • Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

Full specifications and features

Receiving/Input Features

  • Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
  • 1 x 4-channel 24-bit/48k USB Audio Class in
  • Receiving 8-channel 24-bit Dante® flows in unicast or multicast
  • Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI® simultaneously
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
  • Signal to noise ratio > 100dB
  • Dynamic range > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 24dBu

Transmitting/Output Features

  • Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
  • 1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
  • 1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
  • 1 x 4-channel 24-bit/48k UAC out
  • Encoding 8-channel 24-bit Dante® flows in unicast or multicast
  • Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI® protocols simultaneously
  • Support for PTP master/slave
  • Total harmonic distortion < 0.01% @ +4dBu
  • Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
  • Dynamic range > 100dB
  • Signal to noise ratio > 100dB
  • Max signal level: unbalanced at 12dBu, balanced at 18dBu

Configuration Management

  • Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration
  • Registration with Magewell Cloud
  • Remote control via WebUI and Magewell Cloud
  • Provision of comprehensive information regarding the device and signals in real-time
  • Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection
  • Support for updating firmware
  • Support for USB NET
  • Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provision of HTTP APIs

Interfaces

  • 10/100/1000Mbps with PoE (IEEE 802.3af)
  • USB2.0 Type B
    • 5V/2.1A power supply
    • USB NET

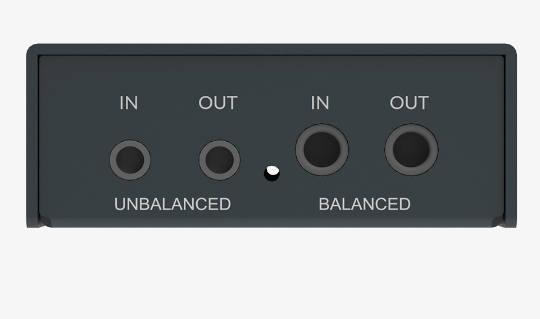

  • 3.5mm TRS unbalanced IN/OUT
  • 4.4mm TRRRS balanced IN/OUT

LED Indicators

  • Power LED indications:
    • on: power on
    • off: power off
  • PTP LED indications:
    • on: synced
    • off: not synced
    • blinking: syncing

Form Factor

  • 100.9mm (L) x 60.2mm (W)x 23.3mm (H)

Accessories

  • 4.4mm to Dual XLR Male Cable
  • 4.4mm to Dual XLR Female Cable
  • USB 2.0 cable (Type A to Type B)
  • Universal power adapter
  • L bracket

On-board Control Buttons

  • 16 Position Rotary DIP Switch: set board-index from 0 to F

Screw Mounting Hole

  • ¼–20 threaded hole

Power Consumption

  • 5V max current: ~ 1 A
  • Max power consumption: ~ 5 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing

Others

    • Support for Dante Controller, providing signal routing and configuration
    • Plug-and-play as a UAC device
    • Provide comprehensive information regarding the device and signals in real-time
    • Remote control via Web GUI and Magewell Cloud
    • Provide HTTP APIs

Firmware

Firmware

V1.2.405

30.1 MB | 2023.06.09

Descriptions:
  1. Support setting to send a default logo video for SRT TX.
  2. Support auto rebooting periodically.
  3. DEP (Dante Embedded Platform) supports the AES67 protocol.
  4. Optimize the audio transmission latency of Dante protocol.
  5. Fix the issue that the settings in Dante Controller and DDM cannot be saved after restarting the device.
