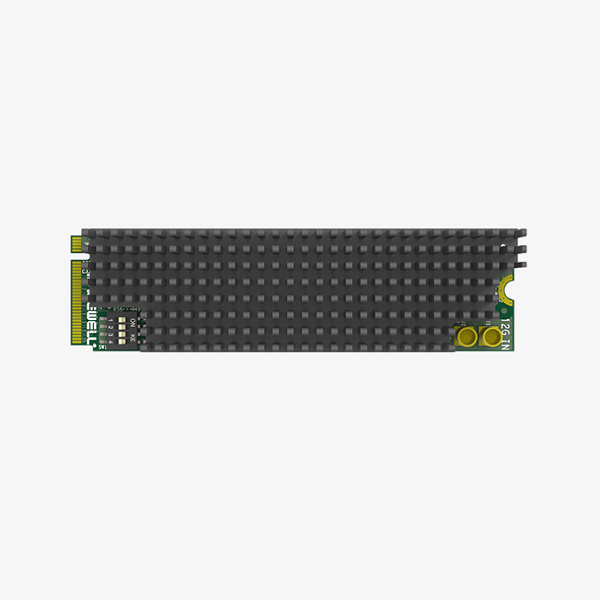

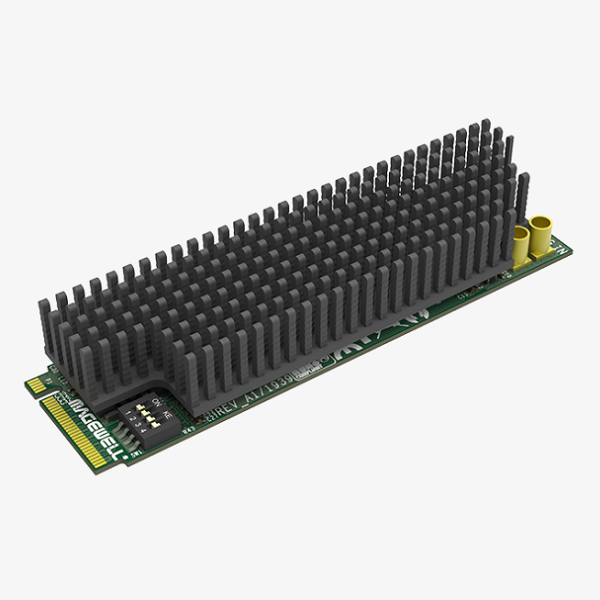

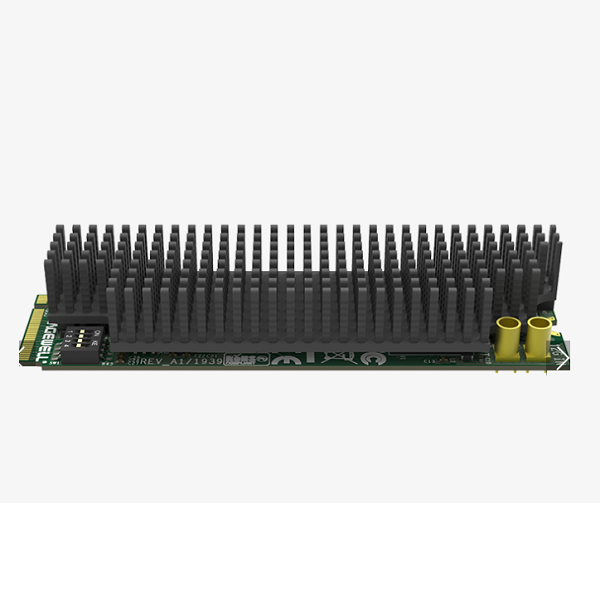

Eco Capture SDI 4K Plus M.2

£0.00

Single channel 4K capture card

  • Captures SD/HD/3G/6G/12G SDI + embedded audio
  • Loop-through SD/HD/3G/6G/12G SDI + embedded audio

Interface

SPECIFICATION & FEATURES

  • Interface

    Input Interface

    • SD/HD/3G/6G/12G SDI
    • Support input resolution up to 4096×2160 pixels

    Loop-through Interface

    • SD/HD/3G/6G/12G SDI

    Host Interface

    • M.2 (PCIe Gen2 x4)

    Video Engine

    • Auto detection of input signal format
    • Color formats conversion
    • Low latency mode
    • SG-DMA transmission mode
    • Multiple replicated capture streams
    • Closed caption (SDK required)

    Software

FULL SPECIFICATION & FEATURES

Supported OS

  • Windows
    • Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux (support x86, x64 & ARM architecture)
    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above
    • CentOS 6.5/7 (x86 & x64) and above
    • Fedora 25/26/27 (x86 & x64) and above
    • Red hat 6.5 (x86 & x64) and above
    • Other Linux OS with kernel version 2.6.35 and above

Recommended OS (tested)

  • Windows
    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux
    • Ubuntu 12.04/14.04/16.04 (x86 & x64)
    • Ubuntu 17.04/17.10/18.04 (x64)
    • CentOS 6.5/7.2 (x86 & x64)
    • Fedora 25/26 (x64)
    • Red hat 6.5 (x86 & x64)

Supported APIs

  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA

Supported Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

  • MMCX
    • SD/HD/3G/6G/12G SDI

Loop-through Interfaces

  • MMCX
    • SD/HD/3G/6G/12G SDI

Host Interface

  • M.2 2280 Type M (PCIe Gen2 x4)

Input Features

  • Support for input video resolutions up to 4096×2160 pixels

SDI Specific Features

  • Integrated cable equalizer extending the cable length as follows:
    • up to 430m for SD-SDI signals
    • up to 200m for HD-SDI signals
    • up to 110m for 3G-SDI signals
    • up to 50m for 6G-SDI signals
    • up to 30m for 12G-SDI signals
  • Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G standards
  • Support for 4K (4096×2160) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 (mono) audio channels at 48KHz
  • Support for extraction of audio formation information & channel status data
  • Support for Closed Caption via SDK

Video Capture Formats

  • Support for capture image resolutions up to 4096×2160 pixels
  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. )
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • More capture formats are supported via SDK

Video Processing Features

  • Video processing pipelines with ~720Mpixels/s processing bandwidth
  • 10-bit 4:4:4 video processing
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of capture color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion

Multiple Cards per System

  • Support for multiple cards plugged to one system
  • On-board dip switch to set card number with 16 positions
  • System hardware device tree will display “01: Eco Capture SDI 4K Plus M.2” when dip switch is set to 0001, and so on
  • The video and audio device names displayed in your software will include the card number (set by the dip switch)

Multiple Replicated Capture Streams

  • Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

Timestamp & A/V Synchronization

  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets

SDK

  • Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
  • Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
  • Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: idle
    • On: input signal locked
    • Off: input signal unlocked
    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • M.2 2280 standard size

Accessories

  • MMCX to BNC cable

Power Consumption

  • Max current at 3.3V: ~ 2.17 A
  • Max power consumption: ~ 7.16 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing

OTHERS

      • 2-year warranty
      • Continuously work for 24hx7
      • LED status indicator
      • Multiple devices on one host
      • On-board dip switch to set card number
